Responsive Menu For Mobile And Desktop Using Tailwind | HTML ,Tailwind
The responsive navigation bar is essential element for every website because it is the main element that is responsible to make it more easily accessible for users.
Nowadays various technologies are used to develop the front end of websites like bootstrap, tailwind, semantic, and foundation are the most popular UI front end frameworks.
In this tutorial, we will use tailwind technology. The design of the navigation bar will be very simple and easy to understand. For large screen sizes, there will be icons and names for each function. After that, we will go for mobile navigation development which will show icons only.
We already have one playlist for the navigation bar only so you can visit that:
READ ALSO:
01. Include Tailwind Link
Firstly we will design the basic structure of HTML then we will add a tailwind library online link in this file. The HTML document will be like the below structure:
<!DOCTYPE html> <html> <head> <title>Responsive Menu For Mobile And Desktop Using Tailwind | Rustcode</title> </head> <body> // html code </body> </html>
We now include the "tailwind" link in this HTML document so that we can use the tailwind class directly. In the head section of html document, we will add the tailwind online link. Tailwind's online link is already given below:
Tailwind Link:
<script src="https://cdn.tailwindcss.com"></script>
Now, this HTML document is ready to use tailwind classes and the final structure will look like the below document.
<!DOCTYPE html> <html> <head> <title>Responsive Menu For Mobile And Desktop Using Tailwind | Rustcode</title> </head> <body> // html content <script src="https://cdn.tailwindcss.com"></script> <body> </html>
02. HTML
In this section, we just start with the body part of the html document. The first navigation bar container will be designed so that it will easily add other useful links inside.
Now SVG image will be used for the icon of the navigation bar. Each navigation bar link will contains a icon only later we will add the name of that link.
<div class="flex flex-col items-center w-16 h-full overflow-hidden text-indigo-300 bg-indigo-900 rounded"> <a class="flex items-center justify-center mt-3" href="#"> <svg class="w-6 h-6 fill-current" xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24" fill="currentColor"> <path d="M7,0H4A4,4,0,0,0,0,4V7a4,4,0,0,0,4,4H7a4,4,0,0,0,4-4V4A4,4,0,0,0,7,0ZM9,7A2,2,0,0,1,7,9H4A2,2,0,0,1,2,7V4A2,2,0,0,1,4,2H7A2,2,0,0,1,9,4Z"/> <path d="M20,0H17a4,4,0,0,0-4,4V7a4,4,0,0,0,4,4h3a4,4,0,0,0,4-4V4A4,4,0,0,0,20,0Zm2,7a2,2,0,0,1-2,2H17a2,2,0,0,1-2-2V4a2,2,0,0,1,2-2h3a2,2,0,0,1,2,2Z"/> <path d="M7,13H4a4,4,0,0,0-4,4v3a4,4,0,0,0,4,4H7a4,4,0,0,0,4-4V17A4,4,0,0,0,7,13Zm2,7a2,2,0,0,1-2,2H4a2,2,0,0,1-2-2V17a2,2,0,0,1,2-2H7a2,2,0,0,1,2,2Z"/> <path d="M20,13H17a4,4,0,0,0-4,4v3a4,4,0,0,0,4,4h3a4,4,0,0,0,4-4V17A4,4,0,0,0,20,13Zm2,7a2,2,0,0,1-2,2H17a2,2,0,0,1-2-2V17a2,2,0,0,1,2-2h3a2,2,0,0,1,2,2Z"/> </svg> </a> <div class="flex flex-col items-center mt-3 border-t border-gray-700"> <a class="flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 12l2-2m0 0l7-7 7 7M5 10v10a1 1 0 001 1h3m10-11l2 2m-2-2v10a1 1 0 01-1 1h-3m-6 0a1 1 0 001-1v-4a1 1 0 011-1h2a1 1 0 011 1v4a1 1 0 001 1m-6 0h6" /> </svg> </a> <a class="flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M21 21l-6-6m2-5a7 7 0 11-14 0 7 7 0 0114 0z" /> </svg> </a> <a class="flex items-center justify-center w-12 h-12 mt-2 text-indigo-100 bg-indigo-700 rounded" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"><g><path xmlns="http://www.w3.org/2000/svg" d="M23,22H5a3,3,0,0,1-3-3V1A1,1,0,0,0,0,1V19a5.006,5.006,0,0,0,5,5H23a1,1,0,0,0,0-2Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M6,20a1,1,0,0,0,1-1V12a1,1,0,0,0-2,0v7A1,1,0,0,0,6,20Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M10,10v9a1,1,0,0,0,2,0V10a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M15,13v6a1,1,0,0,0,2,0V13a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M20,9V19a1,1,0,0,0,2,0V9a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M6,9a1,1,0,0,0,.707-.293l3.586-3.586a1.025,1.025,0,0,1,1.414,0l2.172,2.172a3,3,0,0,0,4.242,0l5.586-5.586A1,1,0,0,0,22.293.293L16.707,5.878a1,1,0,0,1-1.414,0L13.121,3.707a3,3,0,0,0-4.242,0L5.293,7.293A1,1,0,0,0,6,9Z" fill="#ffffff" data-original="#000000"/></g> </svg> </a> <a class="flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M8 7v8a2 2 0 002 2h6M8 7V5a2 2 0 012-2h4.586a1 1 0 01.707.293l4.414 4.414a1 1 0 01.293.707V15a2 2 0 01-2 2h-2M8 7H6a2 2 0 00-2 2v10a2 2 0 002 2h8a2 2 0 002-2v-2" /> </svg> </a> </div> <div class="flex flex-col items-center mt-2 border-t border-gray-700"> <a class="flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 3h2l.4 2M7 13h10l4-8H5.4M7 13L5.4 5M7 13l-2.293 2.293c-.63.63-.184 1.707.707 1.707H17m0 0a2 2 0 100 4 2 2 0 000-4zm-8 2a2 2 0 11-4 0 2 2 0 014 0z" /> </svg> </a> <a class="flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 6V4m0 2a2 2 0 100 4m0-4a2 2 0 110 4m-6 8a2 2 0 100-4m0 4a2 2 0 110-4m0 4v2m0-6V4m6 6v10m6-2a2 2 0 100-4m0 4a2 2 0 110-4m0 4v2m0-6V4" /> </svg> </a> <a class="relative flex items-center justify-center w-12 h-12 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 8h10M7 12h4m1 8l-4-4H5a2 2 0 01-2-2V6a2 2 0 012-2h14a2 2 0 012 2v8a2 2 0 01-2 2h-3l-4 4z" /> </svg> <span class="absolute top-0 left-0 w-2 h-2 mt-2 ml-2 bg-indigo-500 rounded-full"></span> </a> </div> <a class="flex items-center justify-center w-16 h-16 mt-auto bg-indigo-800 hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M5.121 17.804A13.937 13.937 0 0112 16c2.5 0 4.847.655 6.879 1.804M15 10a3 3 0 11-6 0 3 3 0 016 0zm6 2a9 9 0 11-18 0 9 9 0 0118 0z" /> </svg> </a> </div>
Output:
Now symbols are available for each link, but in addition, we will also have symbol names. Let's add the name of each icon
<div class="flex flex-col items-center w-40 h-full overflow-hidden text-indigo-300 bg-indigo-900 rounded"> <a class="flex items-center w-full px-3 mt-3" href="#"> <svg class="w-6 h-6 fill-current" xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24" fill="currentColor"> <path d="M7,0H4A4,4,0,0,0,0,4V7a4,4,0,0,0,4,4H7a4,4,0,0,0,4-4V4A4,4,0,0,0,7,0ZM9,7A2,2,0,0,1,7,9H4A2,2,0,0,1,2,7V4A2,2,0,0,1,4,2H7A2,2,0,0,1,9,4Z"/> <path d="M20,0H17a4,4,0,0,0-4,4V7a4,4,0,0,0,4,4h3a4,4,0,0,0,4-4V4A4,4,0,0,0,20,0Zm2,7a2,2,0,0,1-2,2H17a2,2,0,0,1-2-2V4a2,2,0,0,1,2-2h3a2,2,0,0,1,2,2Z"/> <path d="M7,13H4a4,4,0,0,0-4,4v3a4,4,0,0,0,4,4H7a4,4,0,0,0,4-4V17A4,4,0,0,0,7,13Zm2,7a2,2,0,0,1-2,2H4a2,2,0,0,1-2-2V17a2,2,0,0,1,2-2H7a2,2,0,0,1,2,2Z"/> <path d="M20,13H17a4,4,0,0,0-4,4v3a4,4,0,0,0,4,4h3a4,4,0,0,0,4-4V17A4,4,0,0,0,20,13Zm2,7a2,2,0,0,1-2,2H17a2,2,0,0,1-2-2V17a2,2,0,0,1,2-2h3a2,2,0,0,1,2,2Z"/> </svg> <span class="ml-2 text-sm font-bold">AppX</span> </a> <div class="w-full px-2"> <div class="flex flex-col items-center w-full mt-3 border-t border-gray-700"> <a class="flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 12l2-2m0 0l7-7 7 7M5 10v10a1 1 0 001 1h3m10-11l2 2m-2-2v10a1 1 0 01-1 1h-3m-6 0a1 1 0 001-1v-4a1 1 0 011-1h2a1 1 0 011 1v4a1 1 0 001 1m-6 0h6" /> </svg> <span class="ml-2 text-sm font-medium">Dasboard</span> </a> <a class="flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M21 21l-6-6m2-5a7 7 0 11-14 0 7 7 0 0114 0z" /> </svg> <span class="ml-2 text-sm font-medium">Search</span> </a> <a class="flex items-center w-full h-12 px-3 mt-2 text-gray-400 bg-indigo-700 text-indigo-100 rounded" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <g><path xmlns="http://www.w3.org/2000/svg" d="M23,22H5a3,3,0,0,1-3-3V1A1,1,0,0,0,0,1V19a5.006,5.006,0,0,0,5,5H23a1,1,0,0,0,0-2Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M6,20a1,1,0,0,0,1-1V12a1,1,0,0,0-2,0v7A1,1,0,0,0,6,20Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M10,10v9a1,1,0,0,0,2,0V10a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M15,13v6a1,1,0,0,0,2,0V13a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M20,9V19a1,1,0,0,0,2,0V9a1,1,0,0,0-2,0Z" fill="#ffffff" data-original="#000000"/><path xmlns="http://www.w3.org/2000/svg" d="M6,9a1,1,0,0,0,.707-.293l3.586-3.586a1.025,1.025,0,0,1,1.414,0l2.172,2.172a3,3,0,0,0,4.242,0l5.586-5.586A1,1,0,0,0,22.293.293L16.707,5.878a1,1,0,0,1-1.414,0L13.121,3.707a3,3,0,0,0-4.242,0L5.293,7.293A1,1,0,0,0,6,9Z" fill="#ffffff" data-original="#000000"/></g> </svg> <span class="ml-2 text-sm font-medium">Analysis</span> </a> <a class="flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M8 7v8a2 2 0 002 2h6M8 7V5a2 2 0 012-2h4.586a1 1 0 01.707.293l4.414 4.414a1 1 0 01.293.707V15a2 2 0 01-2 2h-2M8 7H6a2 2 0 00-2 2v10a2 2 0 002 2h8a2 2 0 002-2v-2" /> </svg> <span class="ml-2 text-sm font-medium">Docs</span> </a> </div> <div class="flex flex-col items-center w-full mt-2 border-t border-gray-700"> <a class="flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 3h2l.4 2M7 13h10l4-8H5.4M7 13L5.4 5M7 13l-2.293 2.293c-.63.63-.184 1.707.707 1.707H17m0 0a2 2 0 100 4 2 2 0 000-4zm-8 2a2 2 0 11-4 0 2 2 0 014 0z" /> </svg> <span class="ml-2 text-sm font-medium">Products</span> </a> <a class="flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 6V4m0 2a2 2 0 100 4m0-4a2 2 0 110 4m-6 8a2 2 0 100-4m0 4a2 2 0 110-4m0 4v2m0-6V4m6 6v10m6-2a2 2 0 100-4m0 4a2 2 0 110-4m0 4v2m0-6V4" /> </svg> <span class="ml-2 text-sm font-medium">Settings</span> </a> <a class="relative flex items-center w-full h-12 px-3 mt-2 rounded hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 8h10M7 12h4m1 8l-4-4H5a2 2 0 01-2-2V6a2 2 0 012-2h14a2 2 0 012 2v8a2 2 0 01-2 2h-3l-4 4z" /> </svg> <span class="ml-2 text-sm font-medium">Messages</span> <span class="absolute top-0 left-0 w-2 h-2 mt-2 ml-2 bg-indigo-500 rounded-full"></span> </a> </div> </div> <a class="flex items-center justify-center w-full h-16 mt-auto bg-indigo-800 hover:bg-indigo-700" href="#"> <svg class="w-6 h-6 stroke-current" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke="currentColor"> <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M5.121 17.804A13.937 13.937 0 0112 16c2.5 0 4.847.655 6.879 1.804M15 10a3 3 0 11-6 0 3 3 0 016 0zm6 2a9 9 0 11-18 0 9 9 0 0118 0z" /> </svg> <span class="ml-2 text-sm font-medium">Account</span> </a> </div>

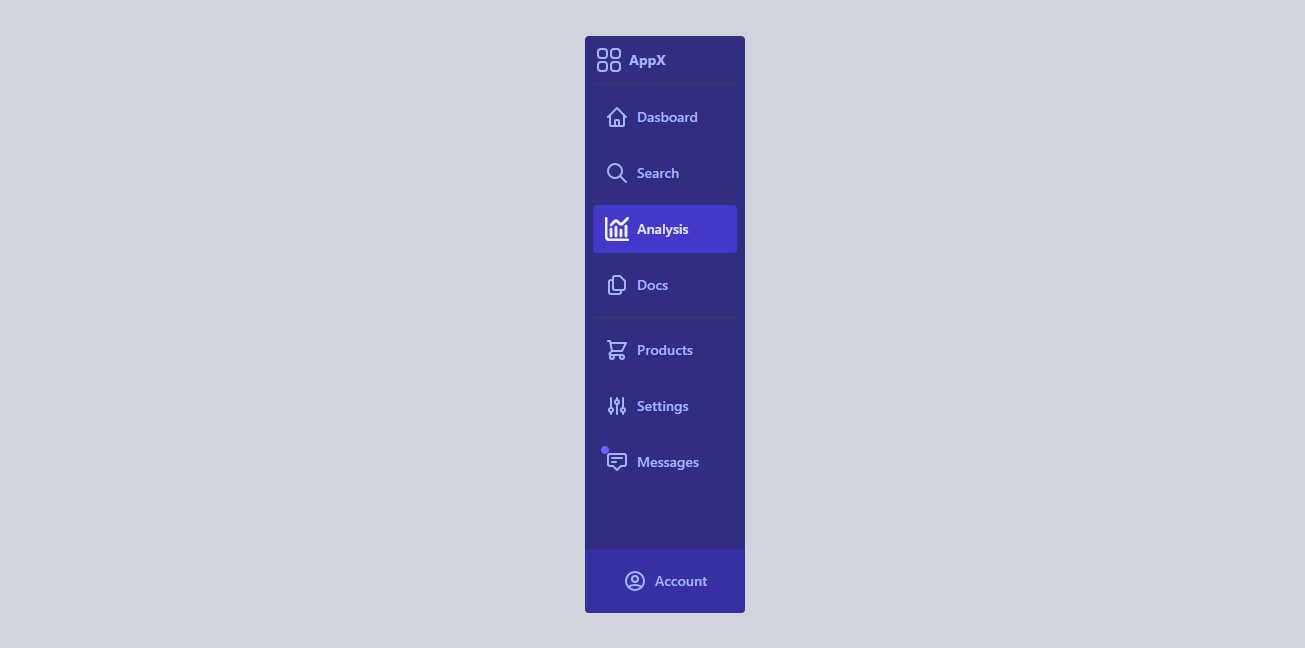

Output:
